3208T34 Body Piston .040 Cylinder Liner 101-4495 Engine 320-8T34 Ring 1014495 Piston

Product Categories
Guangzhou Tianhe District Zhuji Fengtu Mechanical Equipment Sales Department
Contact Now

3208T34 Body Piston .040 Cylinder Liner 101-4495 Engine 320-8T34 Ring 1014495 Piston

Brand Name : Caterpillar

Model Number : 3116

Certification : 68555435543

Place of Origin : China

MOQ : 1

Price : Price negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 10

Delivery Time : 3-5

Packaging Details : box

model OEM : 3116

product name : 1014495 BODY AS-PISTON Caterpillar parts

cross code : CA1014495 101-4495 1014495

other name : Piston Kit

sort : Cylinder Liner

application : Engine Parts

applicable : Excavator Parts

Weight : XX kg.

Contact Now

1014495 BODY AS-PISTON Caterpillar parts 3116

Product Description

CA1014495
101-4495
1014495

TRUCK ENGINE 3116 Caterpillar

3116 Truck Engine 9GK00001-UP

105-1817 PISTON & ROD GP
S/N 9GK1-70157
18:1 RATIO

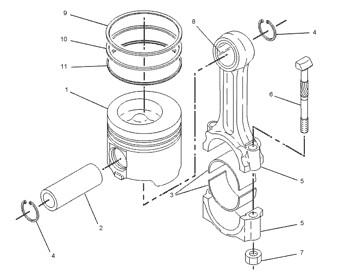

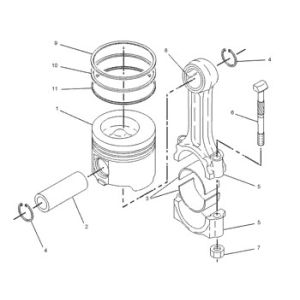

Information

Pos. Part No Qty Parts name Comments
1. 101-4495 [1] BODY AS-PISTON
2. 7C-0115 [1] PIN-PISTON
3. 7W-9415 [1] BEARING-CONNECTING ROD (STANDARD)
7C-6976 A [1] BEARING-CONNECTING ROD (0.25-MM US)(CONNECTING ROD)
7C-6977 A [1] BEARING-CONNECTING ROD (0.5-MM US)(CONNECTING ROD)
4. 7C-0111 [2] RETAINER-PIN
5. 2W-9128 [1] ROD AS-CONNECTING
6. 9N-3832 [2] BOLT-CONNECTING ROD
7. 9L-7669 [2] NUT-CONNECTING ROD (7/16-20-THD)
8. 2W-0027 [1] BEARING (EYE END)
9. 107-7787 [1] RING-PISTON (TOP)(TOP)
10. 4P-1807 [1] RING-PISTON (INTERMEDIATE)
11. 4P-1806 [1] RING-PISTON (OIL CONTROL)


OEM

9T9940 Piston Engine 9T-9940 Ring 3208H32 Body Piston .020 Cylinder Liner 320-8H32
1003259 Pump G Engine 100-3259 Ring 3208H34 Body Piston .040 Cylinder Liner 320-8H34
1003596 Piston Engine 100-3596 Ring 3208T32 Body Piston .020 Cylinder Liner 320-8T32
1014495 Piston Engine 101-4495 Ring 3208T34 Body Piston .040 Cylinder Liner 320-8T34
1046374 Piston Engine 104-6374 Ring 3G2848 Pump Group Piston Cylinder Liner 3G-2848
1051710 Piston Engine 105-1710 Ring 3S4031 Piston Ring Group Cylinder Liner 3S-4031
1052593 Piston Engine 105-2593 Ring 4E5542 Boot Valve Piston Cylinder Liner 4E-5542
1070984 Piston Engine 107-0984 Ring 4P1549 Skirt Piston 3116 Cylinder Liner 4P-1549
1079172 Piston Engine 107-9172 Ring 4T2767 Pump Group Piston Cylinder Liner 4T-2767
1121773 Piston Engine 112-1773 Ring 4T7426 Pump Group Piston Cylinder Liner 4T-7426
1141071 Piston Engine 114-1071 Ring 4W9491 Ring Kit (Piston) Cylinder Liner 4W-9491
1149306 Piston Engine 114-9306 Ring 5S1135 Ring Group Piston Cylinder Liner 5S-1135
1166107 Piston Engine 116-6107 Ring 6E0838 Pump Group Piston Cylinder Liner 6E-0838
1177238 Piston Engine 117-7238 Ring 6E3137 Pump Group Piston Cylinder Liner 6E-3137

3208T34 Body Piston .040 Cylinder Liner 101-4495 Engine 320-8T34 Ring 1014495 Piston


Quality 3208T34 Body Piston .040 Cylinder Liner 101-4495 Engine 320-8T34 Ring 1014495 Piston for sale

3208T34 Body Piston .040 Cylinder Liner 101-4495 Engine 320-8T34 Ring 1014495 Piston Images
